Oxygen evolution reaction

A critical consideration in designing improved battery electrodes is structural stability at and slightly above operating temperatures. Oxygen evolution reactions (OERs) can lead to structural degradation of the electrode, reducing the number of cycles a potential electrode can withstand.

The MP API client has a feature to generate OER data for the intercalation electrode collection, and the analysis tools used there can be extended further to study electrode materials not in our database. NB: the OER data in MP only includes thermodynamic contributions, and neglects kinetic factors.

Methods

Following Ong et al., we use the thermodynamic phase diagram to trace possible decomposition products, while permitting structural changes, as a function of the effective O₂ chemical potential μ*(T). To map μ*(T) for gaseous O₂ to a temperature, we approximate the PV contribution to Gibbs energy as that of an ideal gas [1]:

$$\mu^*(T) \approx \mu(T_0, p_0) + k_B T[1 - S(T)/k_B + \ln(p/p_0)]$$

We use the NIST JANAF thermochemical tables for oxygen [2], which provide entropies S(T) measured at p=0.1 MPa, and reference ensemble conditions at room temperature: T₀=298.15 K and p₀ = 0.21 atm [1]. Using a spline fit of T(μ*), we can invert this relationship reliably for a large range of temperatures.

Examples

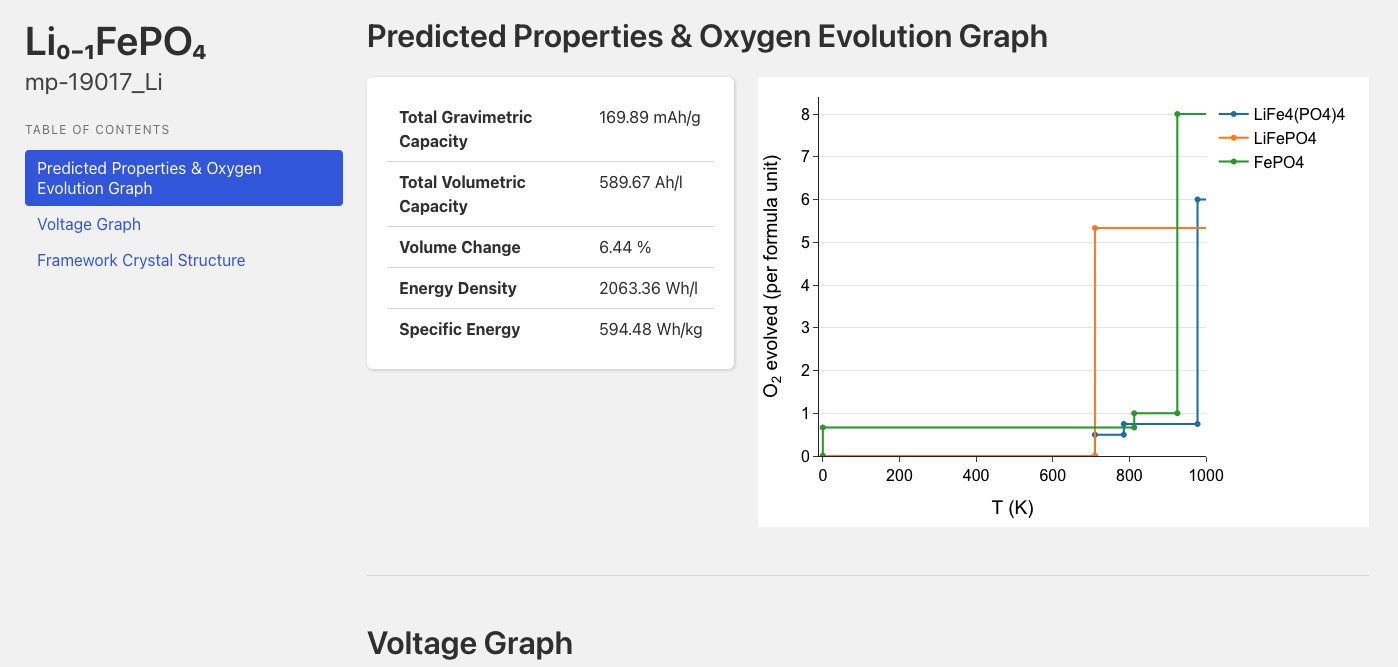

For olivine FePO4 (mp-19017), the website shows OER mechanisms for all stable entries in the insertion electrodes entry for the corresponding electrode material, mp-19017_Li

You can retrieve the same data using the API client mp_api as follows:

from mp_api.client import MPRester

with MPRester("your_api_key") as mpr:
    oxyevo = mpr.get_oxygen_evolution("mp-19017","Li")

The keys of oxyevo are the formulas of the stable entries in the electrode entry, and its values are pandas-friendly dicts of the OER thermodynamic data:

import pandas as pd
print(pd.DataFrame(oxyevo["Fe4 P4 O16"]))
>>> mu                                reaction     evolution  temperature
0 -8.334987                     FePO4 -> FeP + 2 O2  8.000000e+00  1395.096762
1 -7.054396                     FePO4 -> FeP + 2 O2  8.000000e+00   925.094009
2 -7.054396               4 FePO4 -> 2 Fe2P2O7 + O2  1.000000e+00   925.094009
3 -6.761139               4 FePO4 -> 2 Fe2P2O7 + O2  1.000000e+00   812.674113
4 -6.761139  6 FePO4 -> Fe3(P2O7)2 + Fe3(PO4)2 + O2  6.666667e-01   812.674113
5 -4.947961  6 FePO4 -> Fe3(P2O7)2 + Fe3(PO4)2 + O2  6.666667e-01     0.000000
6 -4.947961                          FePO4 -> FePO4 -3.151621e-15     0.000000

References

[1] S.P. Ong, A. Jain, G. Hautier, B. Kang, and G. Ceder, "Thermal stabilities of delithiated olivine MPO₄ (M = Fe, Mn) cathodes investigated using first principles calculations", Electrochem. Commun. 12, 427–430 (2010), https://doi.org/10.1016/j.elecom.2010.01.010

[2] M.W. Chase, NIST-JANAF Thermochemical Tables, vol. 12, American Chemical Society, New York, 1998. https://janaf.nist.gov/tables/O-029.html
